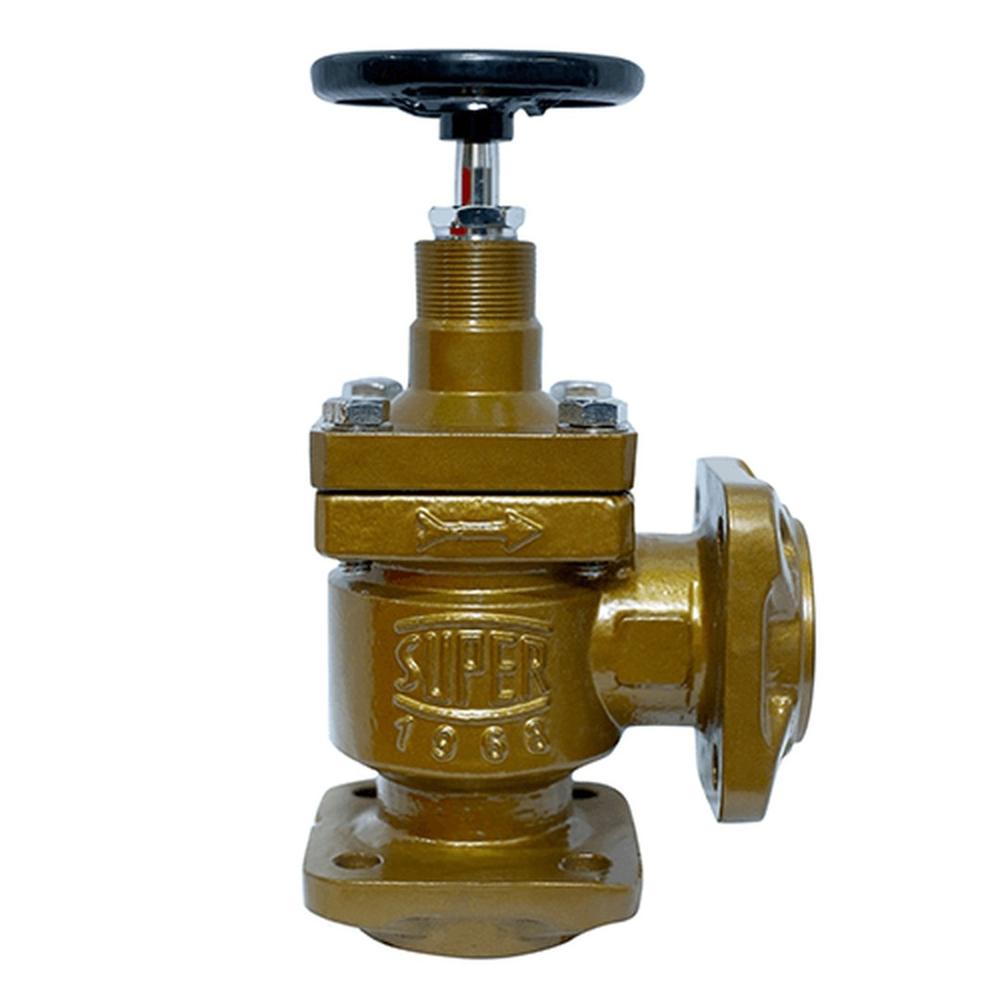

Ammonia Shut Off Valves Globe and Angle

About Ammonia Shut Off Valves Globe and Angle

SUPER 1968 shut-off valves are designed for industrial ammonia (R717) and large commercial halocarbon refrigeration systems, for liquid, suction, hot gas, discharge, recirculating liquid and oil lines. They are built to close tightly and withstand the pulsation and vibration found in discharge lines, and are easy to dismantle and repair. Manufactured by the SUPER group; machined in-house at our Sonipat CNC plant.

Key features

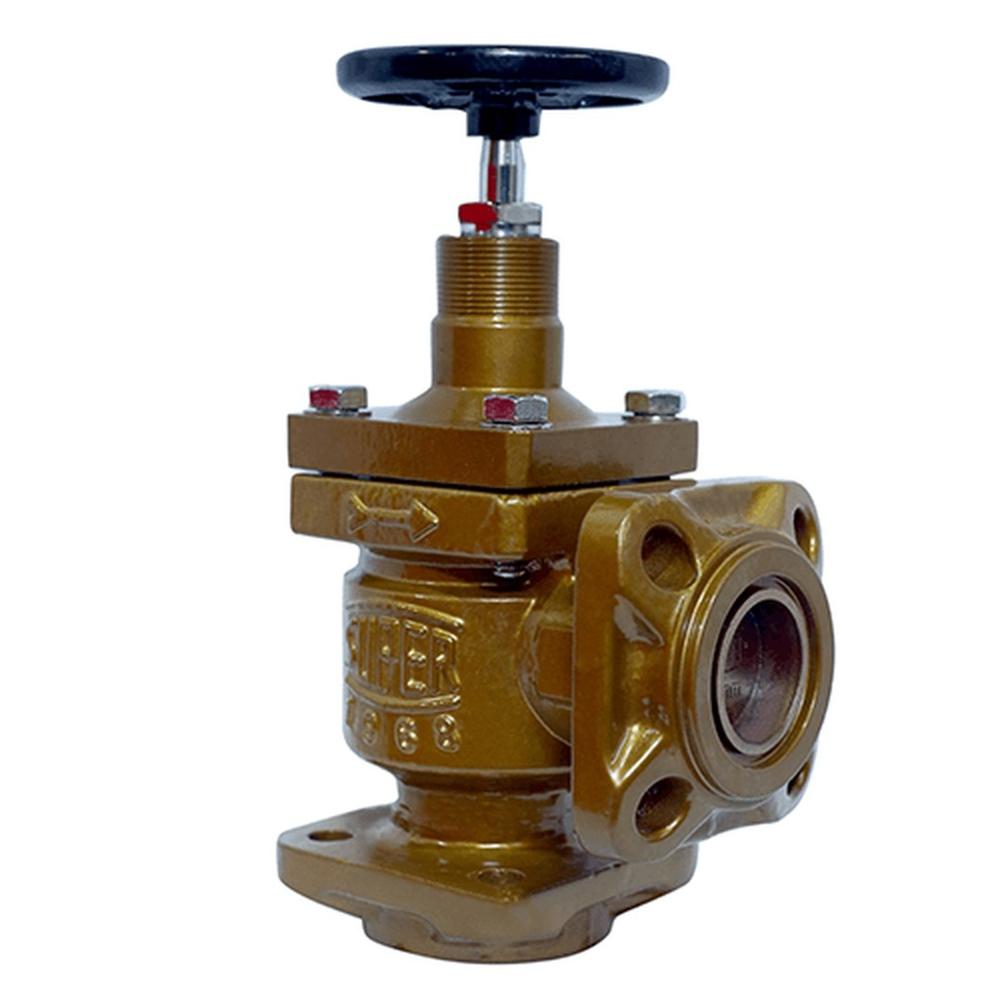

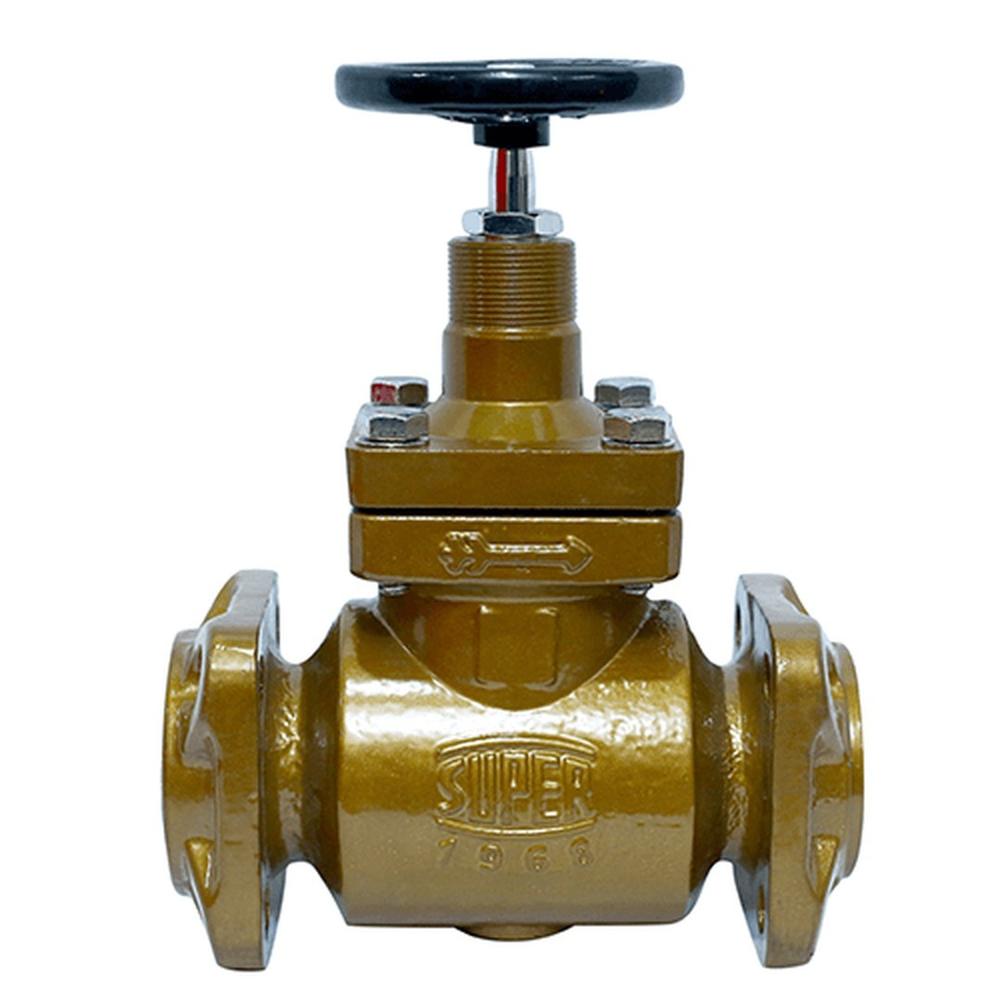

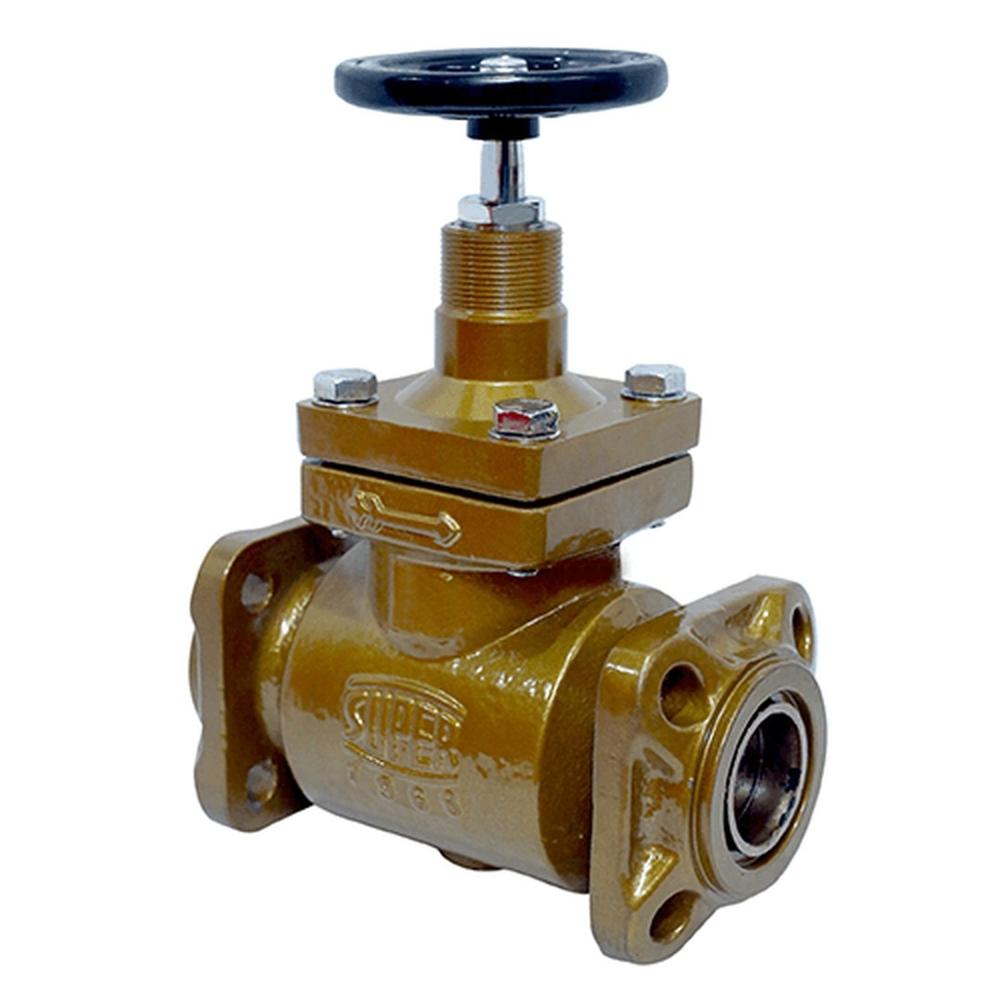

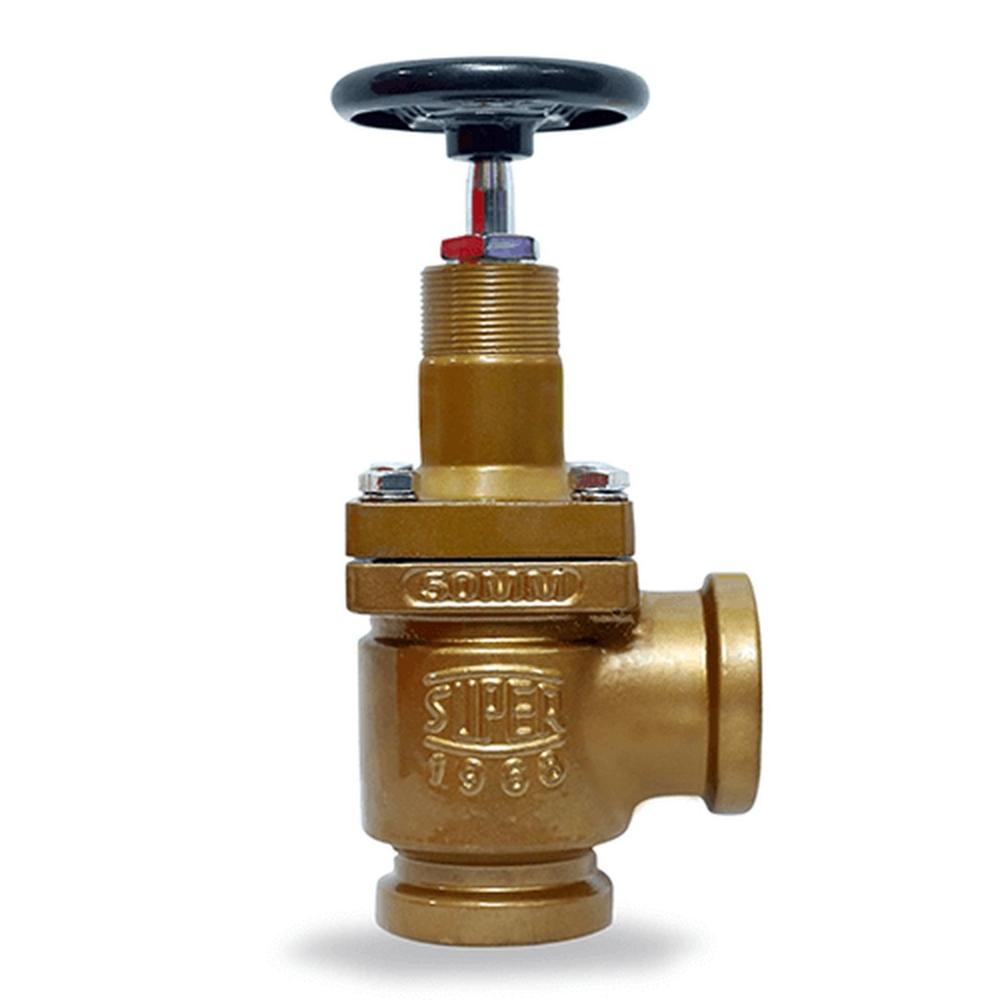

• Available in angle-way and straight-way versions
• Internal PTFE back seating, so the seal can be replaced while the valve is operating
• Extended neck gives greater clearance for insulation
• Non-asbestos gaskets; high-tensile bolts on the bonnet
• Packing gland with scraper ring keeps dirt and ice out of the gland
• Each valve individually pressure tested; components machined on CNC machines

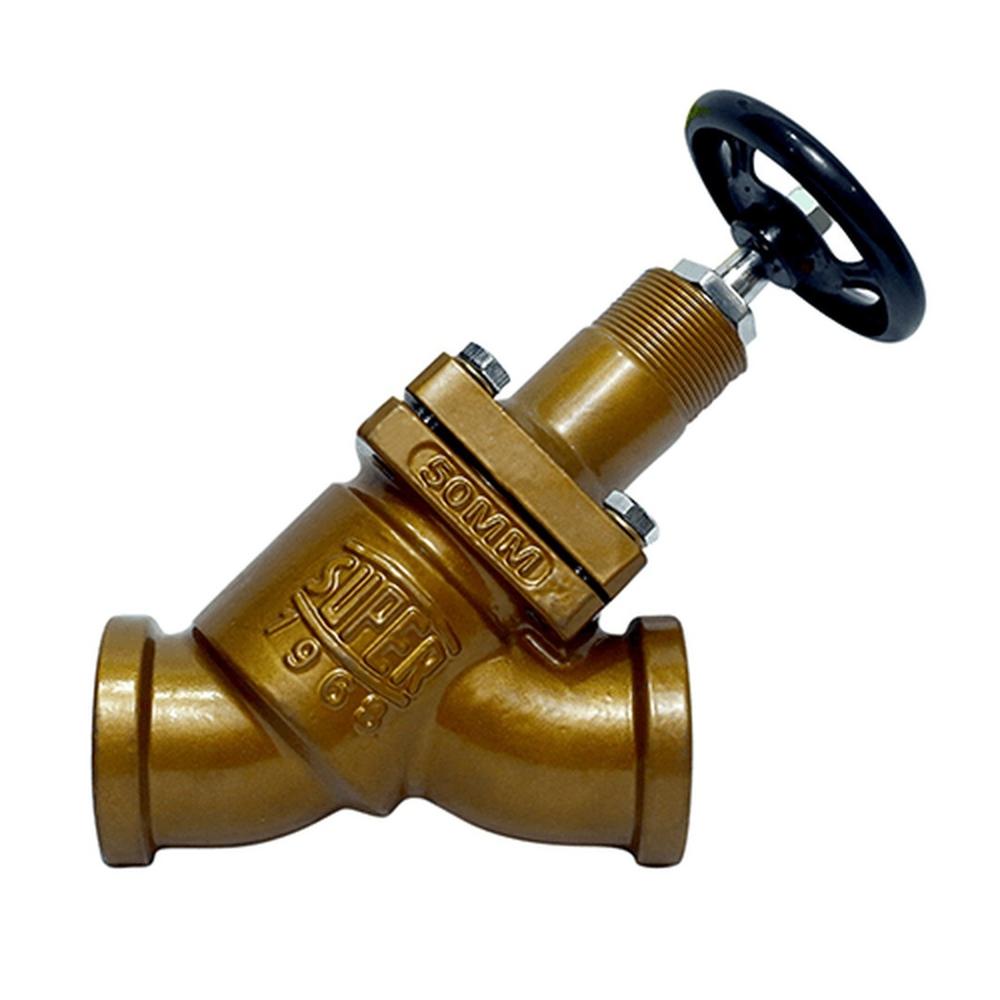

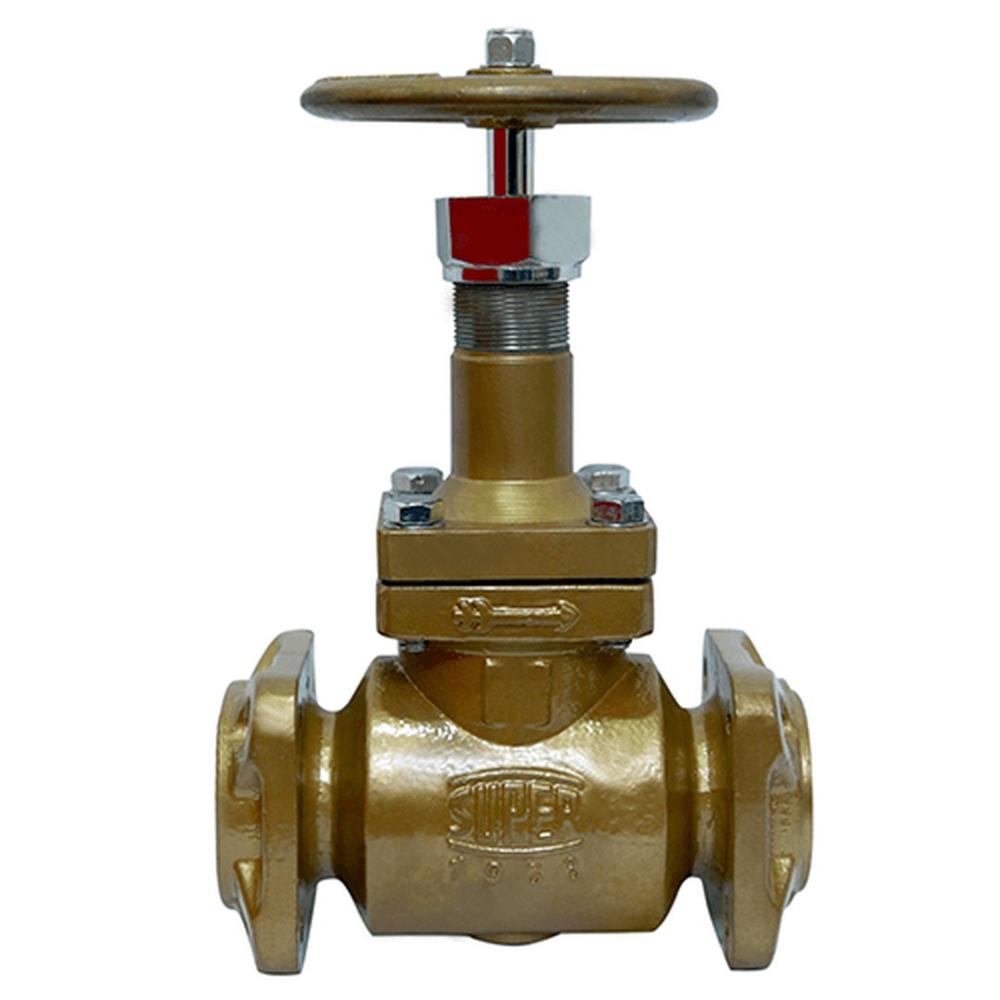

• Types: CIMSF, CIMSS (metal seat), CITSF, CITSS (Teflon seat), CITSFY, CITSSY (Y-type), CSTSW (cast steel, weldable)

Specifications

• Valve Type: Globe / angle shut-off valve
• Port Size: 1/4" to 1" screwed; 1/2" to 8" flanged; 1/2" to 12" weldable
• Body Material: Closed-grain cast iron; lost-wax cast steel (CSTSW)
• Connection Type: Screwed, flanged or socket weldable
• Seat: Metal or Teflon (PTFE)
• Pressure: Safe working pressure 400 psig (27 bar)
• Temperature Range: -51C to +116C (-60F to +240F)
• Refrigerant: R717 (Ammonia), R744 (CO2), HCFC and HFC
• Media: Ammonia (R717)
• Usage: Industrial

Why SUPER: SUPER has made valves since 1968 and is now in its third generation. SUPER REFRIGERATION (INDIA) PVT. LTD. also supplies the other equipment, controls and spares an ammonia plant needs, so you can source from one specialist supplier.

Send an enquiry with size, connection and quantity for a quotation.
Catalogue: https://www.super1968.com/super.pdf
Phone: +91-9811538277 | Email: info@super1968.com
Price shown is the list price of the smallest screwed globe/angle valve (1/4"), ex-works, GST extra.
