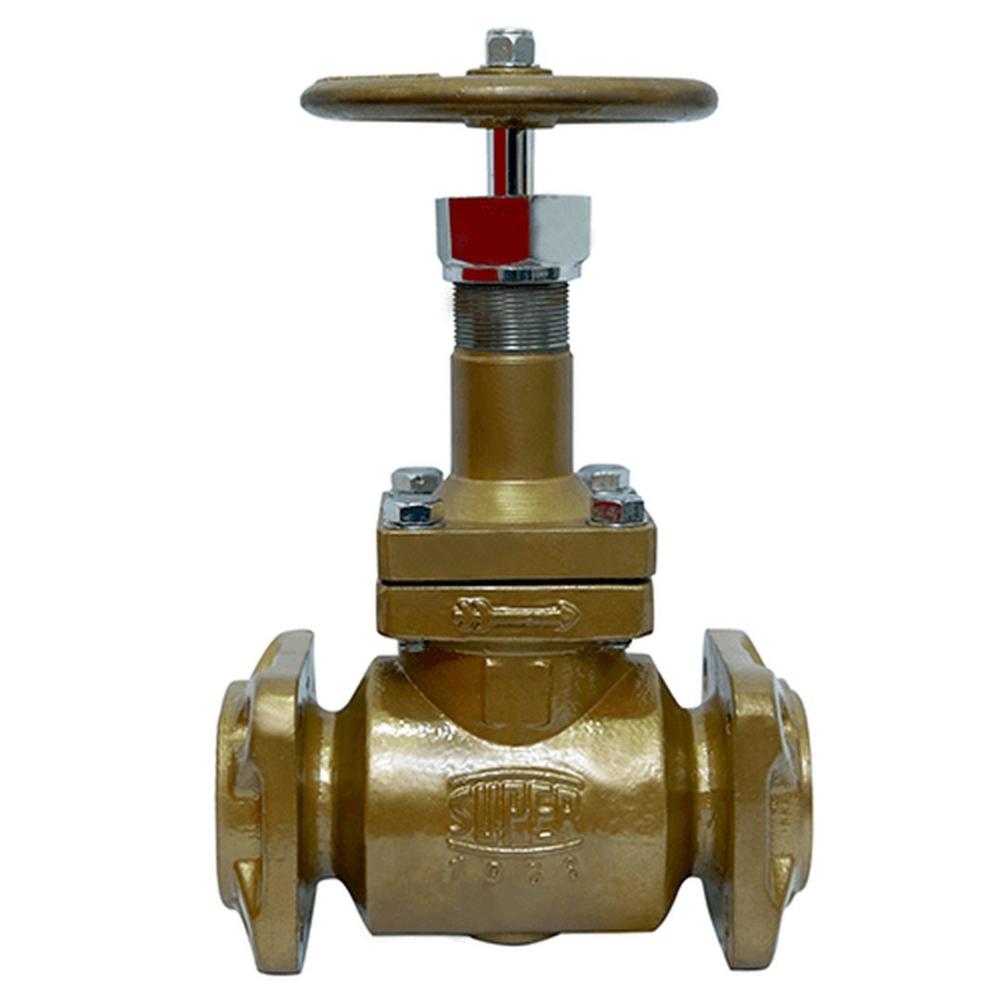

CIMSF Cast Iron Metal Seat Flanged Shut Off Valve for Ammonia

About CIMSF Cast Iron Metal Seat Flanged Shut Off Valve for Ammonia

The SUPER 1968 CIMSF is a flanged, metal-seat globe/angle shut-off valve in closed-grain cast iron for industrial ammonia (R717) refrigeration, for liquid, suction, hot gas, discharge, recirculating liquid and oil lines. It closes tightly, withstands discharge-line pulsation and vibration, and is easy to dismantle and repair. Manufactured by the SUPER group; machined in-house at our Sonipat CNC plant.

Key features

• Available in angle-way and straight-way versions
• Internal PTFE back seating, so the seal can be replaced while the valve is operating
• Extended neck gives greater clearance for insulation
• Non-asbestos gaskets; high-tensile bolts on the bonnet
• Packing gland with scraper ring keeps dirt and ice out of the gland
• Each valve individually pressure tested; components machined on CNC machines
• Stainless-steel spindle; ammonia gland stem sealing; non-metallic back seating

Specifications

• Valve Type: Globe / angle shut-off valve (SUPER type CIMSF)
• Port Size: 1/2" to 8" (15 mm to 200 mm)
• Body Material: Closed-grain cast iron
• Seat: Metal seat
• Connection Type: Flanged
• Pressure: Safe working pressure 400 psig (27 bar)
• Temperature Range: -51C to +116C (-60F to +240F)
• Refrigerant: R717 (Ammonia), R744 (CO2), HCFC and HFC
• Color: Golden (painted)
• Usage: Industrial

Why SUPER: SUPER has made valves since 1968 and is now in its third generation. SUPER REFRIGERATION (INDIA) PVT. LTD. also supplies the other equipment, controls and spares an ammonia plant needs, so you can source from one specialist supplier.

Send an enquiry with size, connection and quantity for a quotation.
Catalogue: https://www.super1968.com/super.pdf
Phone: +91-9811538277 | Email: info@super1968.com
Price shown is the list price for the smallest size (without companion flanges), ex-works, GST extra.
