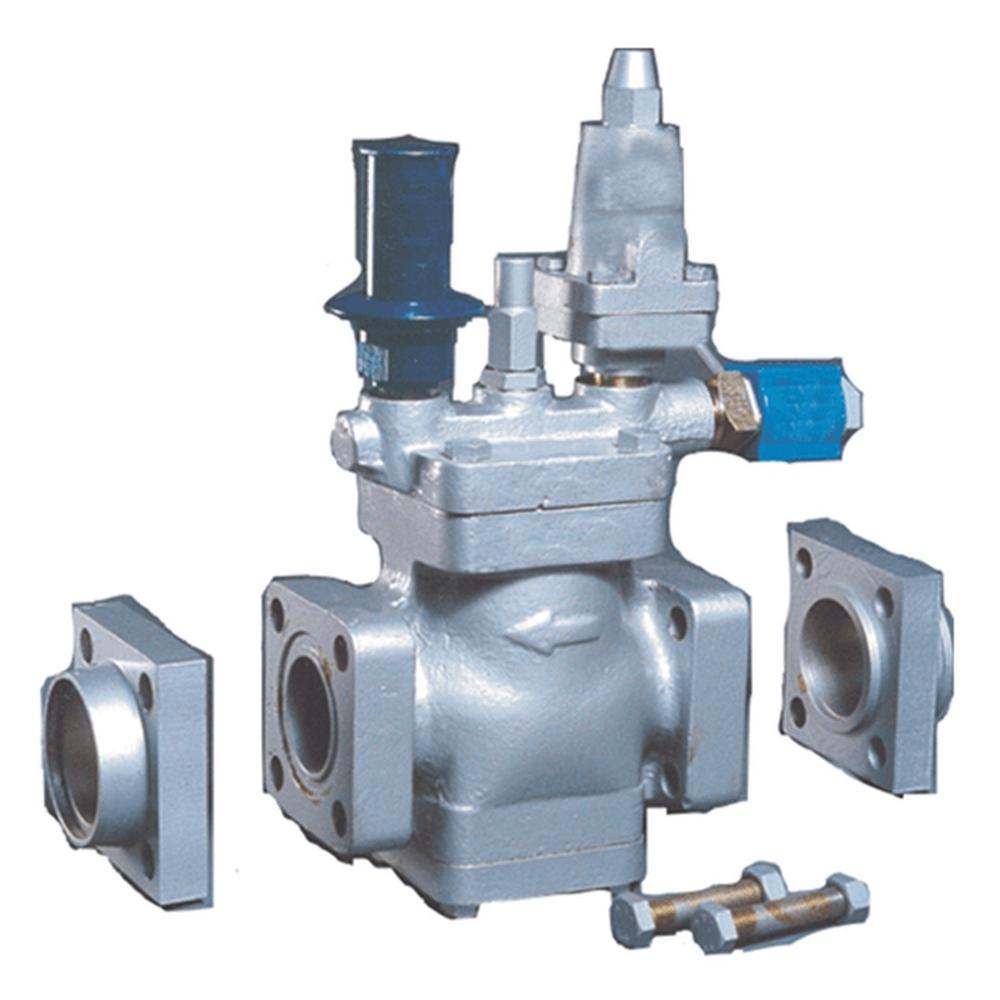

Ammonia Refrigeration Control Valves: Solenoid, Regulator, Overflow

Name: Ammonia Refrigeration Controls Valves
Brand: SUPER REFRIGERATION (INDIA) PVT. LTD.
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Ammonia Refrigeration Control Valves: Solenoid, Regulator, Overflow Specification

Material
Carbon Steel, Stainless Steel, Gun Metal

Features
Corrosion Resistant, Leak Proof, Compatible with Low Temperatures

Valve Size
1/2 to 4 (DN15 to DN100)

Valve Type
Solenoid, regulator, constant-pressure, overflow, flow regulator, valve station

Control System
Manual, Pneumatic, or Electric Actuator

Connection Type
Flanged, weld end or screwed by type

Usage
Industrial

Structure
Forged Body with Flanged or Socket Weld Ends

Application
Ammonia Refrigeration Systems

Voltage
Not Applicable / 24V or 230V (for Solenoid Models)

Sealing
PTFE, Nitrile, or Metal-to-Metal

Type
Globe, Solenoid, Safety, Hand Expansion, Motorized Control Valve

Size
15 mm to 125 mm depending on type

Power
Manual or Pneumatic (as per model)

Pressure
Up to 28 Bar

Media
Ammonia, Refrigerant Gases

Port Size
Available from 15mm to 100mm

Temperature
-50°C to +120°C

Disc
Stainless Steel / Special Alloy

Pin
Stainless Steel, Precisely Machined

Leakage Class
Class VI (bubble-tight) available

Body Finish
Anti-corrosive Paint or Electroplated

Packing
Graphite/ PTFE Gland Packing

Suitable Refrigerants
NH3, R717, R22 (On Request)

End Connection Standard
ANSI, DIN available

Maintenance
Easy In-line Servicing

Operation
Quick Opening and Closing

Design Pressure
Up to 425 psi

Compliance
Meets DIN, IS, or ANSI standards

Mounting Orientation
Any Position, Preferably Vertical

About Ammonia Refrigeration Control Valves: Solenoid, Regulator, Overflow

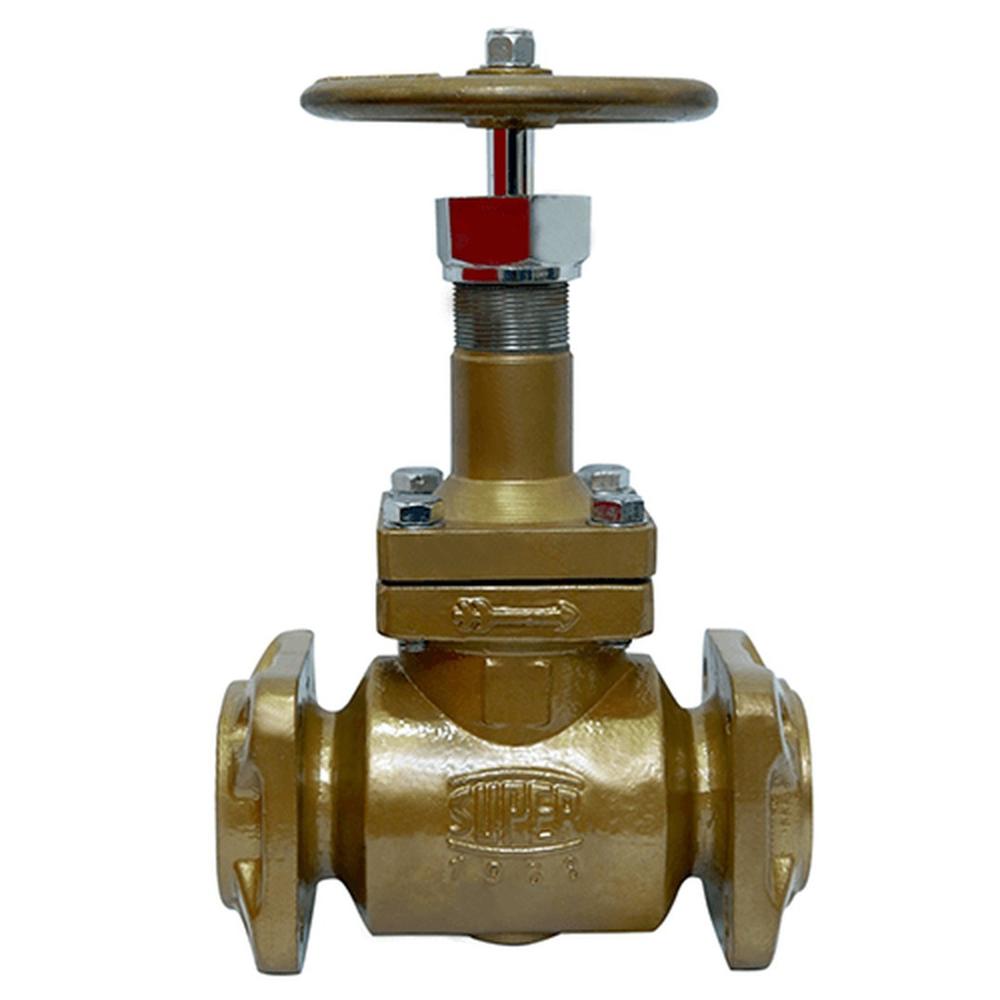

We supply automatic control valves for ammonia (R717) and fluorinated-refrigerant plants: solenoid valves, pilot-operated pressure and temperature regulators, constant-pressure and overflow valves, liquid flow regulators and multi-function valve stations. These are traded controls that sit alongside the SUPER 1968 manual valve range.

Key features

PATR pressure and temperature regulators, pilot operated, flanged, 25-125 mm
SOSV servo-operated and TSSV two-step solenoid valves, flanged (TSSV 32-125 mm); ASV solenoid valves 15-50 mm
CPVS constant-pressure valve for hot-gas defrost drains and pump bypass
OFV overflow valve, weld end, 20 and 25 mm, 2-8 bar adjustable
ALFR automatic liquid flow regulator, 20-50 mm, for overfeed systems
MFVS multi-function valve station: stop, solenoid, filter, hand expansion and non-return in one block

Specifications

Valve Type: Solenoid, regulator, constant-pressure, overflow, flow regulator, valve station
Size: 15 mm to 125 mm depending on type
Connection Type: Flanged, weld end or screwed by type
Refrigerant: R717 (Ammonia) and fluorinated refrigerants
Media: Ammonia (R717)
Usage: Industrial

Why SUPER: SUPER REFRIGERATION (INDIA) PVT. LTD. (brand SUPER 1968, New Delhi) has served industrial refrigeration since 1968 and is now in its third generation. Alongside the SUPER 1968 ammonia valves our group manufactures, we supply compressors, condensers, evaporators, vessels, controls, instruments, ice-plant and cold-storage items, so a plant can source from one specialist supplier.

Send an enquiry with size, connection and quantity for a quotation.
